Multi-Zone Product Line

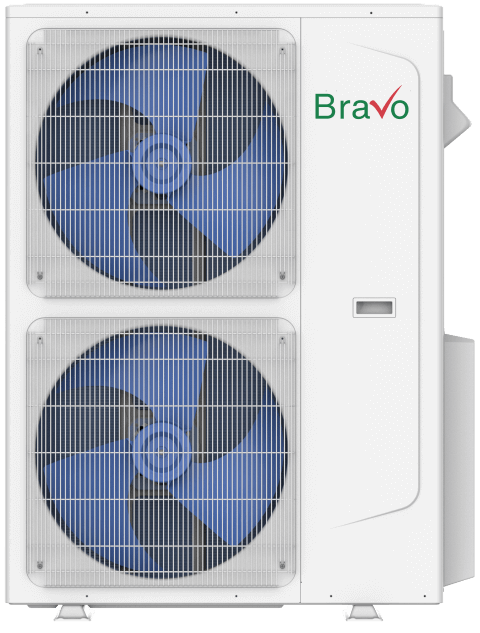

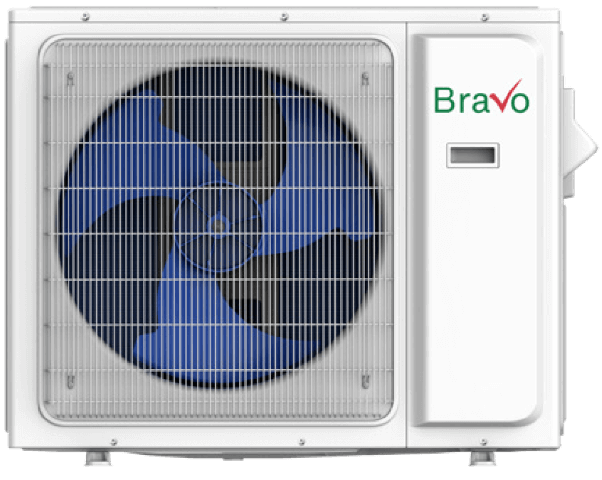

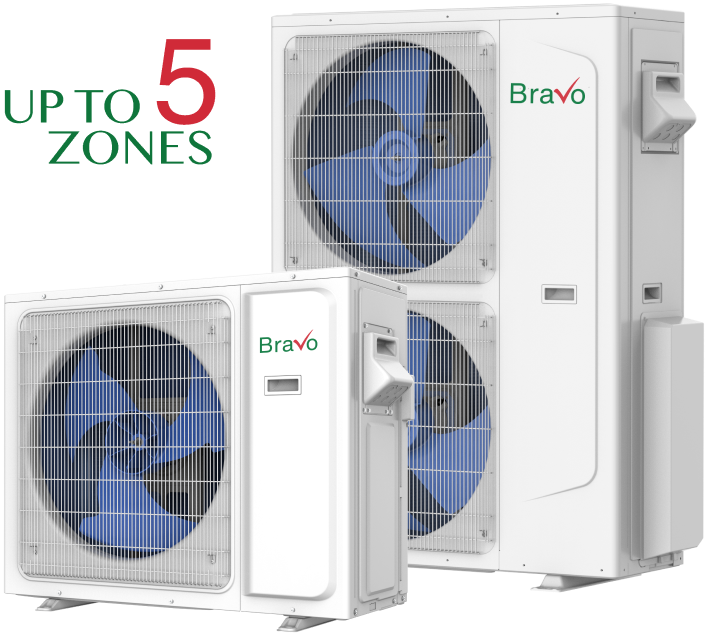

Outdoor Units

logo
logo multi zone

Up to 24.0 SEER2 Rating

  • 18K, 24K, 30K, 36K & 42K Btu/h

  • Inverter Technology

  • Cooling Operation: -13°F~125.6°F

  • Heating Operation: -13°F~75.2°F

  • Eco-Friendly R32

  • Quiet Operation

  • Compact Outdoor Design

BRV-M18-230VOBRV-M24-230VOBRV-M30-230VOBRV-M36-230VOBRV-M42-230VO

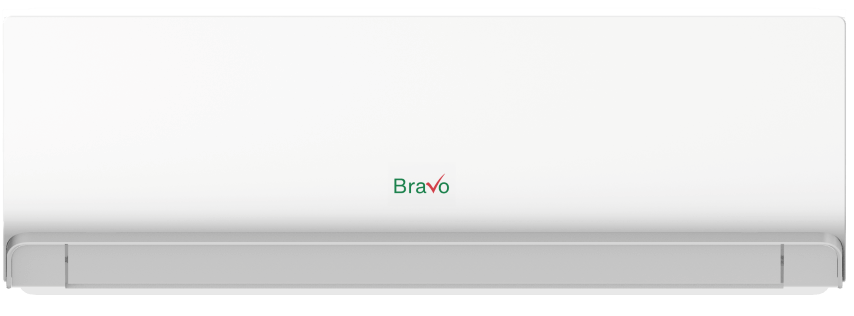

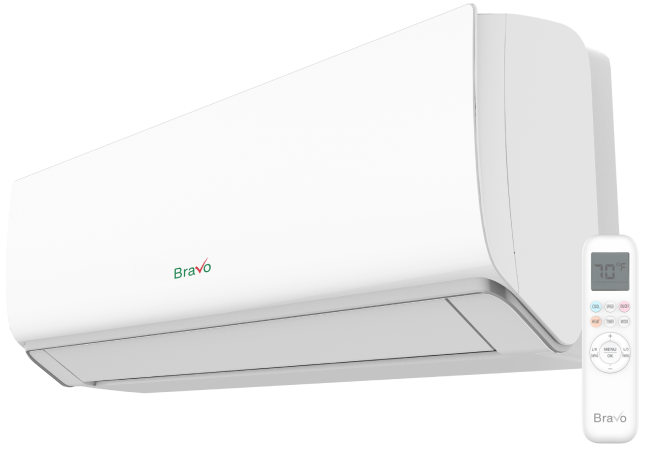

Wall Mount

logo
logo multi zone

  • 9K, 12K, 18K, & 24K Btu/h

  • Cooling and Heating

  • Remote Included

  • Comfortable Sleep Mode

  • Multiple Fan Speeds

  • High Airflow

  • Easy Installation

  • LED Display

  • SMART Kit Built In

BRV-M09WM-230VIBRV-M12WM-230VIBRV-M18WM-230VIBRV-M24WM-230VI

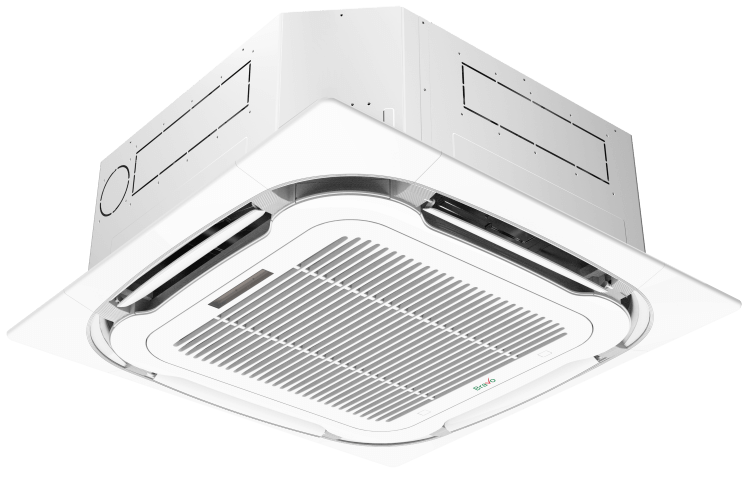

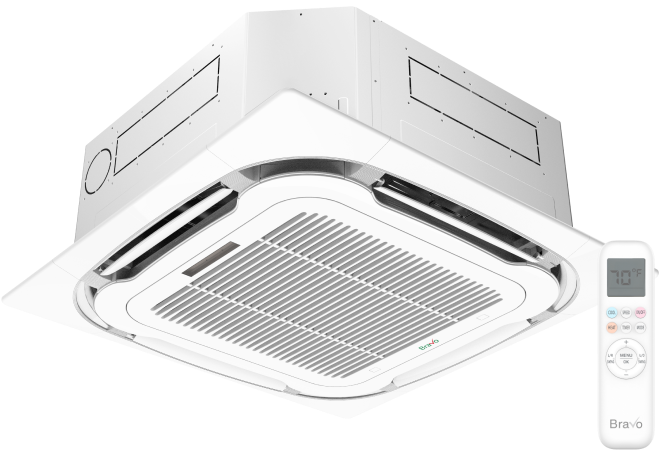

Ceiling Cassette

logo
logo multi zone

  • 9K, 12K, 18K, & 24K Btu/h

  • Cooling and Heating

  • Remote Included

  • Comfortable Sleep Mode

  • Multiple Fan Speeds

  • 360° Perimeter Airflow

  • Anti-Fungal Filter

  • LED Display

  • SMART Kit Built In

BRV-M09CT-230VIBRV-M12CT-230VIBRV-M18CT-230VIBRV-M24CT-230VI

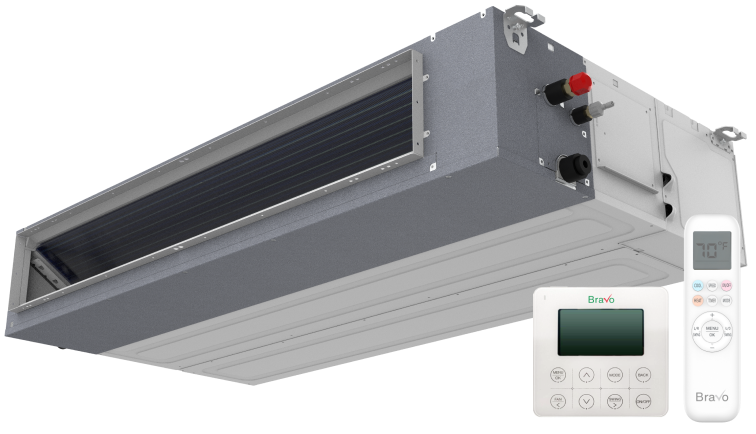

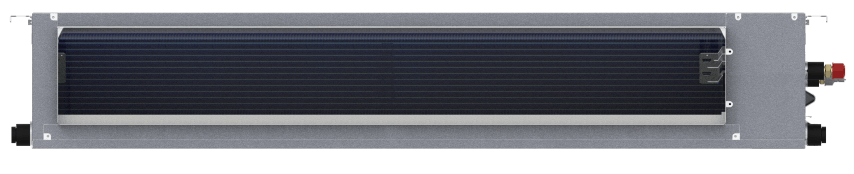

Slim Duct

logo
logo multi zone

  • 9K, 12K, 18K, & 24K Btu/h

  • Cooling and Heating

  • Remote Included

  • Wall Thermostat Included

  • Compact Design

  • Constant Air Volume

  • Flexible Air Intake

  • SMART Kit Built In

BRV-M09DT-230VIBRV-M12DT-230VIBRV-M18DT-230VIBRV-M24DT-230VI

Combination Chart

Btu/hWall MountedDuctCeiling Cassette
wall-mountedwall-mountedwall-mounted
9KBRV-M09WM-230VIBRV-M09DT-230VIBRV-M09CT-230VI
12KBRV-M12WM-230VIBRV-M12DT-230VIBRV-M12CT-230VI
18KBRV-M18WM-230VIBRV-M18DT-230VIBRV-M18CT-230VI
24KBRV-M24WM-230VIBRV-M24DT-230VIBRV-M24CT-230VI
CollingHeatingRefrigerant
Model NameMCAMax. FuseCapacity (range)InputRated currentSEER2EER2Capacity (range)InputRated currentCOPHSPFNoise LevelRefrigerant TypeLiquid SideGas SideMax. length for all roomsMax. length for one IDMax. height elevation between ID & ODMax. height elevation between ID
AABtu/hWABtu/hWAdb (A)inchinchftftftft
BRV-M18-230VO152017,700
(3,800 - 19,800)		14406.39223.618,000
(4,200 - 22,000)		13906.173.81054R322x1/4"2x3/8"131824933
BRV-M24-230VO203024,000
(4,900 - 31,400)		19208.52233.6624,000
(5,200 - 32,000)		17607.7641057R323x1/4"3x3/8"197984933
BRV-M30-230VO264030,000
(6,000 - 38,200)		240010.65233.6630,000
(6,300 - 36,000)		22509.983.91058R324x1/4"4x3/8"2631154933
BRV-M36-230VO294536,000
(6,350 - 38,500)		293012.87233.636,000
(7,000 - 43,000)		264011.5941059R324x1/4"4x3/8"2631154933
BRV-M42-230VO324542,000
(8,350 - 46,000)		336014.92243.6642,000
(8,450 - 53,000)		3160143.910.560R324x1/4"4x3/8"2631154933

Ambient temperature: Cooling: -13 ~ 125.6°F | Heating: -13 ~ 75.2°F

UP TO 2 ZONES

BRV-M18-230VO

BRV-M18-230VO

2 ZONES
9K9K
9K12K
12K12K

UP TO 3 ZONES

BRV-M24-230VO

BRV-M24-230VO

2 ZONES
9K9K
9K12K
9K18K
12K12K
12K18K
18K18K
3 ZONES
9K9K9K
9K9K12K
9K9K18K
9K12K12K
12K12K12K

UP TO 4 ZONES

BRV-M30-230VO

BRV-M30-230VO

2 ZONES
9K9K
9K12K
9K18K
9K24K
12K12K
12K18K
12K24K
18K18K
18K24K
3 ZONES
9K9K9K
9K9K12K
9K9K18K
9K9K24K
9K12K12K
9K12K18K
9K12K24K
12K12K12K
12K12K18K
4 ZONES
9K9K9K9K
9K9K9K12K
9K9K9K18K
9K9K12K12K

UP TO 4 ZONES

BRV-M36-230VO

BRV-M36-230VO

2 ZONES
9K9K
9K12K
9K18K
9K24K
12K12K
12K18K
12K24K
18K18K
18K24K
24K24K
3 ZONES
9K9K9K
9K9K12K
9K9K18K
9K9K24K
9K12K12K
9K12K18K
9K12K24K
9K18K18K
9K18K24K
12K12K12K
12K12K18K
12K12K24K
12K18K18K
12K18K24K
18K18K18K
4 ZONES
9K9K9K9K
9K9K9K12K
9K9K9K18K
9K9K9K24K
9K9K12K12K
9K9K12K18K
9K9K12K24K
9K9K18K18K
9K12K12K12K
9K12K12K18K
12K12K12K12K
12K12K12K18K

UP TO 5 ZONES

BRV-M42-230VO

BRV-M42-230VO

2 ZONES
9K9K
9K12K
9K18K
9K24K
12K12K
12K18K
12K24K
18K18K
18K24K
24K24K
3 ZONES
9K9K9K
9K9K12K
9K9K18K
9K9K24K
9K12K12K
9K12K18K
9K12K24K
12K12K12K
12K12K18K
12K12K24K
12K18K18K
12K18K24K
18K18K18K
18K18K24K
4 ZONES
9K9K9K9K
9K9K9K12K
9K9K9K18K
9K9K9K24K
9K9K12K12K
9K9K12K18K
9K9K12K24K
9K9K18K18K
9K9K18K24K
9K12K12K12K
9K12K12K18K
9K12K12K24K
9K12K18K18K
9K12K18K24K
9K18K18K18K
12K12K12K12K
12K12K12K18K
12K12K12K24K
12K12K18K18K
5 ZONES
9K9K9K9K9K
9K9K9K9K12K
9K9K9K9K18K
9K9K9K9K24K
9K9K9K12K12K
9K9K9K12K18K
9K9K9K12K24K
9K9K9K18K18K
9K9K12K12K12K
9K9K12K12K18K
9K12K12K12K12K
9K12K12K12K18K
12K12K12K12K12K
